Introduction
The G70 is supplied with a 10-wire harness. The harness contains pins for various I/Os. For many installs, where we simply are looking for 'standard' vehicle tracking, we only need to connect 3-wires.

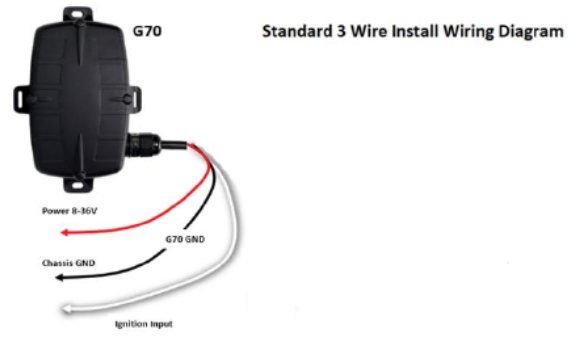

Wiring
- Connect Red on the G70 harness to the vehicle battery (8-36V).
- Connect Black to chassis ground.
- Connect White - to an ignition source.
Notes:
- The White ignition input will register as 'on' when > 2.2V is applied to this line.
- Ensure the Red wire is connected to a constant source. Sometimes it may be inadvertently wired to a point which only provides power when the ignition is on.
Testing

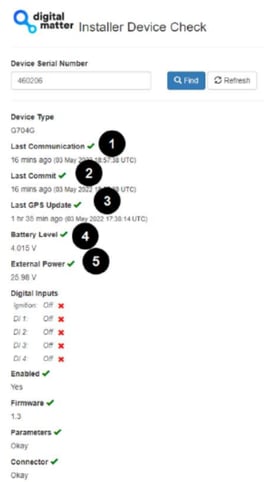

The OEM Installer Page is designed to verify than an installation has been done correctly. We will be using it going forward in this document. The Function of this page is generic across all devices. It is not password protected, and as such is designed to not give any sensitive information away.
Note the page does not auto-refresh.
Enter the device serial number, click Find:
- Check the device has connected recently;
- Check the Last Commit Time is the same as the Last Communication time (or within a couple of minutes). If the device has not committed recently, all following data will be out of date (commit = successful data upload);
- Check the device has got a recent GPS fix;
- Check the internal battery is OK;
- Check the power is what you expect - with the ignition on, and ignition off (make sure to refresh after toggling) - this confirms the power source is constant.;
- Check the Ignition toggles correctly when you turn ignition off/on in vehicle.
Refer to this article for more information on devices.
