The Condition Builder is present in several of Perspio's key functionalities, like Groups, Workflows, Dashboards and Data Explorer. See below a quick guide on how to use it correctly:
1. Opening the Condition Builder
-
Present on any Workflow, Dynamic Group or dashboard.
-

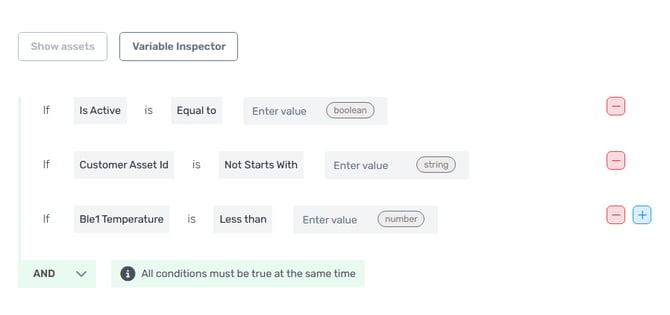

Click Variable Inspector to view asset's variables so they can be used in Workflows.
- Click on Show Assets to view the assets in a Group.
2. Define Your First Condition
-
Select the data category
-
Asset Details
-
Asset Configuration
-
Telemetry
-
-
Choose a field
-
E.g. Asset Name, Validated, Temperature, etc.
-
-
Pick an operator
-
Equals to
-
Contains
-
Starts With / Ends With
-
Greater Than / Less Than
-
…and more, depending on field type.
-
-
Enter or select a value
-
For string fields, type the text.
-
For numeric fields, enter a number.
-
Example:
To match asset names ending with “s”, set
If Asset Name - Ends With“s”

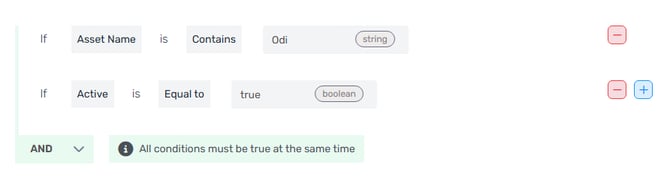

3. Add More Conditions
-
Click the ➕ button on the far right to add another clause.
-
Choose AND (all conditions must be true) or OR (any condition may be true).
-
Repeat the steps to select category → field → operator → value.
Tip: Nest conditions by adding multiple groups. This allows complex logic like:

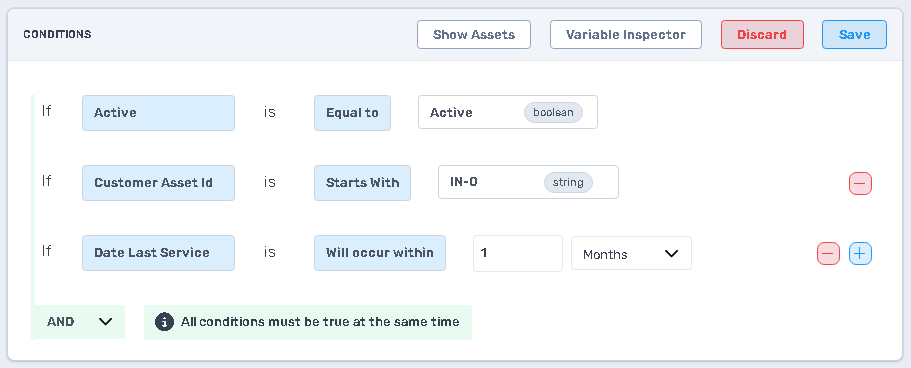

4. Review and Save
-
Preview your assets list to confirm the filter behaves as expected by clicking on Show Assets.
-
Click Save (or Next) to lock in the condition set.
